Guardian Beamer BBC Beam Anchor

Guardian® Beamer® BBC Beam Anchor

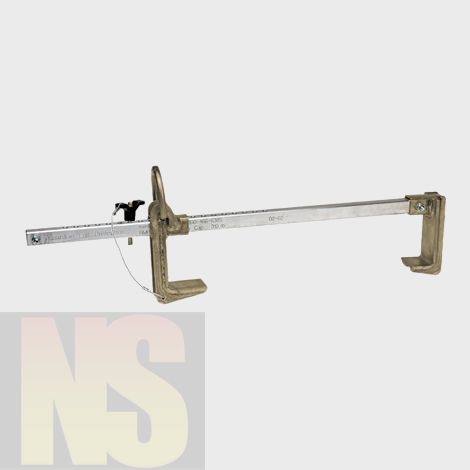

The Guardian Beamer® BBC Beam Anchora is a fall arrest anchor designed for use on the top or bottom flange of a steel I or H beam. It shares many of the features of its relative, the Beamer 2000, but with models available to fit an even wider variety of beams.

Guardian Beamer BBC Beam Anchor Tech Sheet

Specifications

Beam Size Fits 8" to 18" beams (up to 2½" thick)
or
Fits 8” to 18" beams (up to 2½”- 4” thick)
or
Fits 12" to 24" beams (up to 2½" thick)
or
Fits 12” to 24" beams (up to 2½”- 4” thick)
Material Aluminum, zinc-plated steel, and stainless steel
Capacity 420 lbs.
Minimum Breaking Strength 5000 lbs.
Weight 4 lbs.
Applicable Standards ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Part Number [00125] Fits 8" to 18" beams (up to 2½" thick)
or
[00127] Fits 8” to 18" beams (up to 2½”- 4” thick)
or
[00130] Fits 12" to 24" beams (up to 2½" thick)
or
[00135] Fits 12” to 24" beams (up to 2½”- 4” thick)
