Guardian® CB-18 Concrete Anchor Point

$239.16
SKU
Guardian CB18 Concrete Anchor Point

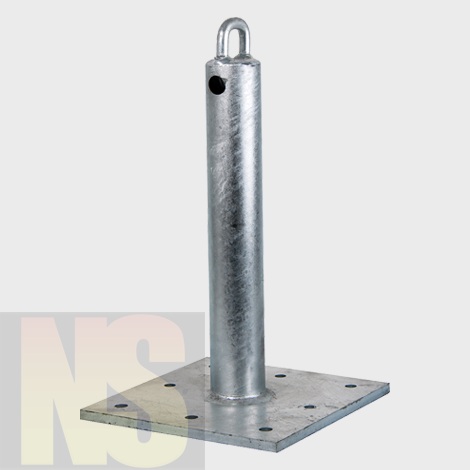

Guardian® CB-18 Concrete Anchor Point

The Guardian CB-18 Concrete Anchor Point is intended for permanent applications. The anchor post functions to extend through roofing so that it is accessible both during and after roof construction, and is compatible for use with SRLs, vertical lifelines, horizontal lifelines, and shock absorbing lanyards. CB-18 Anchors are composed of durable, galvanized steel, and are an excellent choice for nearly any fall protection application. Available with a premium swivel top, pass through top, or no swivel top.

Guardian CB-18 Concrete Anchor Point Tech Sheet

Specifications

Specifications
Material Galvanized Steel
Capacity 420 lbs.
Minimum Breaking Strength 5000 lbs.
Weight 31 lbs. (No Swivel)
31 lbs. (Premium Swivel)
31.4 lbs. (Pass-Thru)
Applicable Standards  ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Part Number 00656 (No Swivel)
00658 (Pass-Thru)
