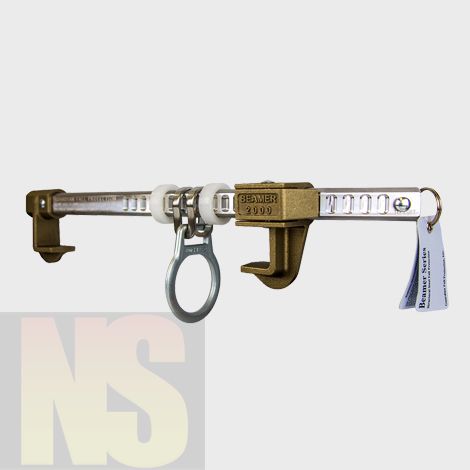

The Guardian Beamer® 2000 Beam Anchor is a versatile fall arrest anchor designed for use both overhead and at foot level. This beam anchor is attachable to both steel I and H beams. The nylon bushings provide smooth movement along the beam and also function as impact indicators in the event of a fall. The anchor also includes a precision machined aluminum bar and ratcheting end pieces, which allow for quick and easy adjustments with just one hand.
Beam Size | Fits 3½" to 14" beams (up to 1¼" thick) or Fits 6" to 16" beams (up to 1¼" thick) |
Material | Aluminum, bronze manganese, zinc-plated steel, and stainless steel |
Capacity | 420 lbs. |
Minimum Breaking Strength | 5000 lbs. |
Weight | 4 lbs. |
Applicable Standards | ANSI Z359.18-17, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910 |
Part Number | 00101 (Fits 3½" to 14" beams) or 00103 (Fits 6" to 16" beams) |
